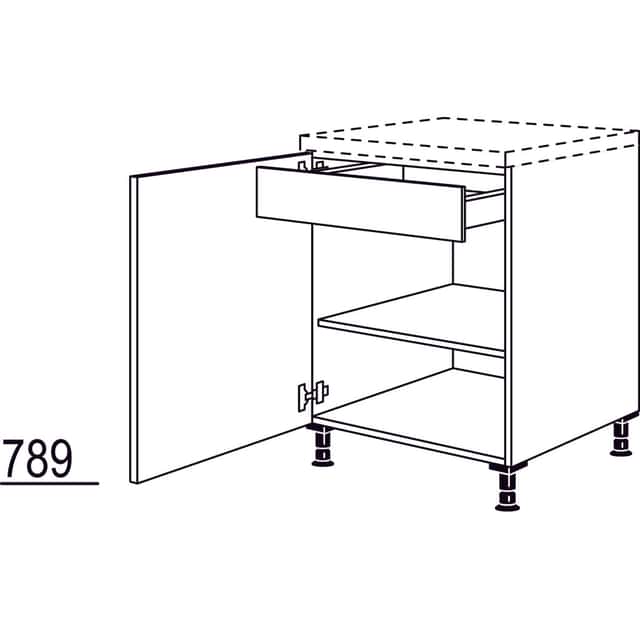

Mini base cabinets are the underestimated gap-fillers of kitchen planning. The Nobilia UDI30-58 with a width of 30 cm and a carcase height of 57.6 cm fits under hobs, seating areas, or wall projections – with an internal drawer for hidden additional storage space.

Technical data:
• Width: 30 cm | Carcase height: 57.6 cm (Mini (57.6 cm))
• Side depth selectable: 56.1 cm (standard) or 46.1 cm – both at no extra charge in the configurator | Special depth 35 cm carcase depth on request (order by phone or email) | Total depth incl. front: approx. 58.2 cm (56.1 cm) or 48.2 cm (46.1 cm)
• Drawer system: nBOX slate grey | Side height: 10.7 mm
• Configuration: 1× internal drawer
• Soft-close mechanism: SoftStoppPro bidirectional (Soft Close & Soft Open)
• Optional: Push-to-open (MP-PTOSA 7962) at extra cost | Standard for Line ONE types
• Load capacity nBOX: drawer max. 30 kg | pull-out max. 30–55 kg (depending on width/depth) | Total cabinet load capacity 40–70 kg
• 5-year manufacturer's warranty | Made in Germany

GS seal by TÜV Rheinland: ease of use, load capacity, material consistency, and safety independently tested – not just declared. Nobilia produces over 8.5 million cabinets per year at 4 German locations on 439,000 m². This industrial scale allows quality standards in fittings, surfaces, and carcase construction that smaller manufacturers structurally cannot achieve. CARB2, TSCA Title VI, F-Four-Star: Nobilia meets the strictest international formaldehyde standards. Emission class A according to RAL-GZ 437 demonstrably protects indoor air quality.

Scope of delivery:
• You set it up – Nobilia has already assembled it. Minimal effort from delivery onward.
• Matching Nobilia mounting material is included.
• Plinth package at no extra charge: front strip 220 cm + side panel 110 cm + all angle connectors.
• Plinth height selectable: 7, 10, 15, or 20 cm | Color via the configurator.

Nobilia-recommended specialist dealer since 2015: Direct delivery from the factory, free shipping, approx. 3–4 weeks. No call center – a personal contact answers questions directly.

Kitchen extension: Use the color number from the purchase contract, not the dealer name. We use Nobilia original codes – this ensures the new cabinet matches the existing run exactly.
