The Nobilia NU2SAAC90 from the LINE-N series combines handleless design with full functionality: nBOX system, SoftStoppPro damping, and 90 cm external width for all standard kitchen depths.

Technical data:
• Width: 90 cm | Carcass height: 72.0 cm (Standard (72.0 cm))
• Side depth selectable: 56.1 cm (standard) or 46.1 cm – both at no extra charge in the configurator | Special depth 35 cm carcass depth on request (order by phone or email) | Total depth incl. front: approx. 58.2 cm (56.1 cm) or 48.2 cm (46.1 cm) – suitable for the standard worktop depth of 60 cm
• Drawer system: nBOX slate grey | Side height: 10.7 mm

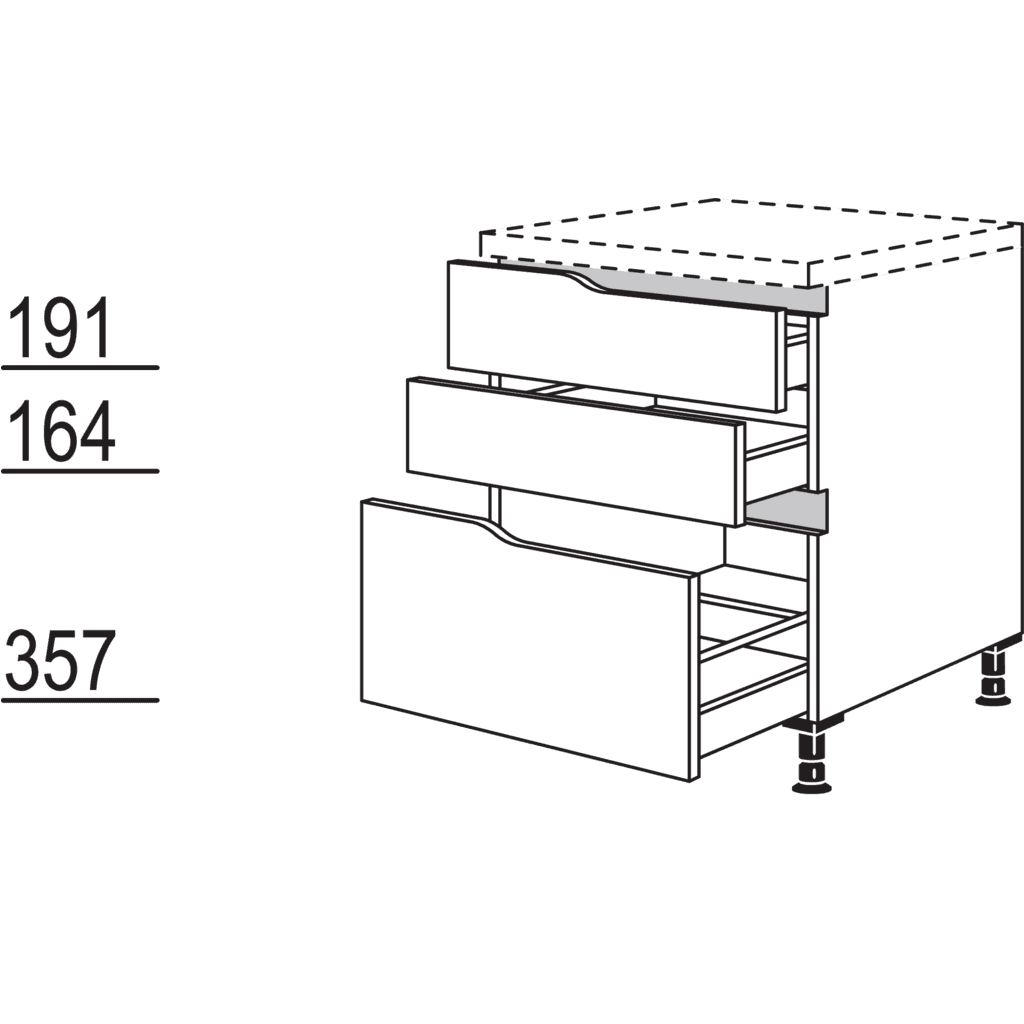

• Configuration: 2 drawers (nBOX, cushioned) | 1 pull-out (nBOX, cushioned)
• Damping: SoftStoppPro bidirectional (Soft Close & Soft Open)
• Push-to-open optional (MP-PTOSA 7962) | For Line ONE types: integrated as standard
• Load capacity nBOX: drawer max. 30 kg | pull-out max. 30–55 kg (depending on width/depth) | Total cabinet load capacity 40–70 kg
• 5-year manufacturer's warranty | Made in Germany

16 mm carcass walls, directly coated on both sides with melamine resin – no foil. The surface is permanently solid, scratch-resistant in everyday use, and can be cleaned completely with a damp cloth. The 2.8 mm HDF back panel is protective-lacquered on both sides and screwed to the carcass. A structural component, not an inserted panel – and the offset installation prevents moisture build-up behind the cabinets. 1.2 mm PP edge on all front edges: more impact-resistant than paper edges and with no warping or peeling even after years.

Scope of delivery:
• You set it up – Nobilia has assembled it. Minimal effort from delivery onward.
• Matching Nobilia installation hardware is included.
• Plinth package at no extra charge: front strip 220 cm + side panel 110 cm + all angle connectors.
• Plinth height selectable: 7, 10, 15 or 20 cm | Color via the configurator.

11 years as a Nobilia partner: direct factory shipping, free delivery, approx. 3–4 weeks. Personal contact for nBOX configuration, planning compatibility, and system height coordination in Frankfurt am Main.

For extensions to existing Nobilia kitchens: always use the color number from the purchase contract – not the dealer name. Dealers assign their own names for Nobilia programs. We work exclusively with Nobilia original codes.
